90mm Combination Ultra Mill with Ductile Frame #187.20A

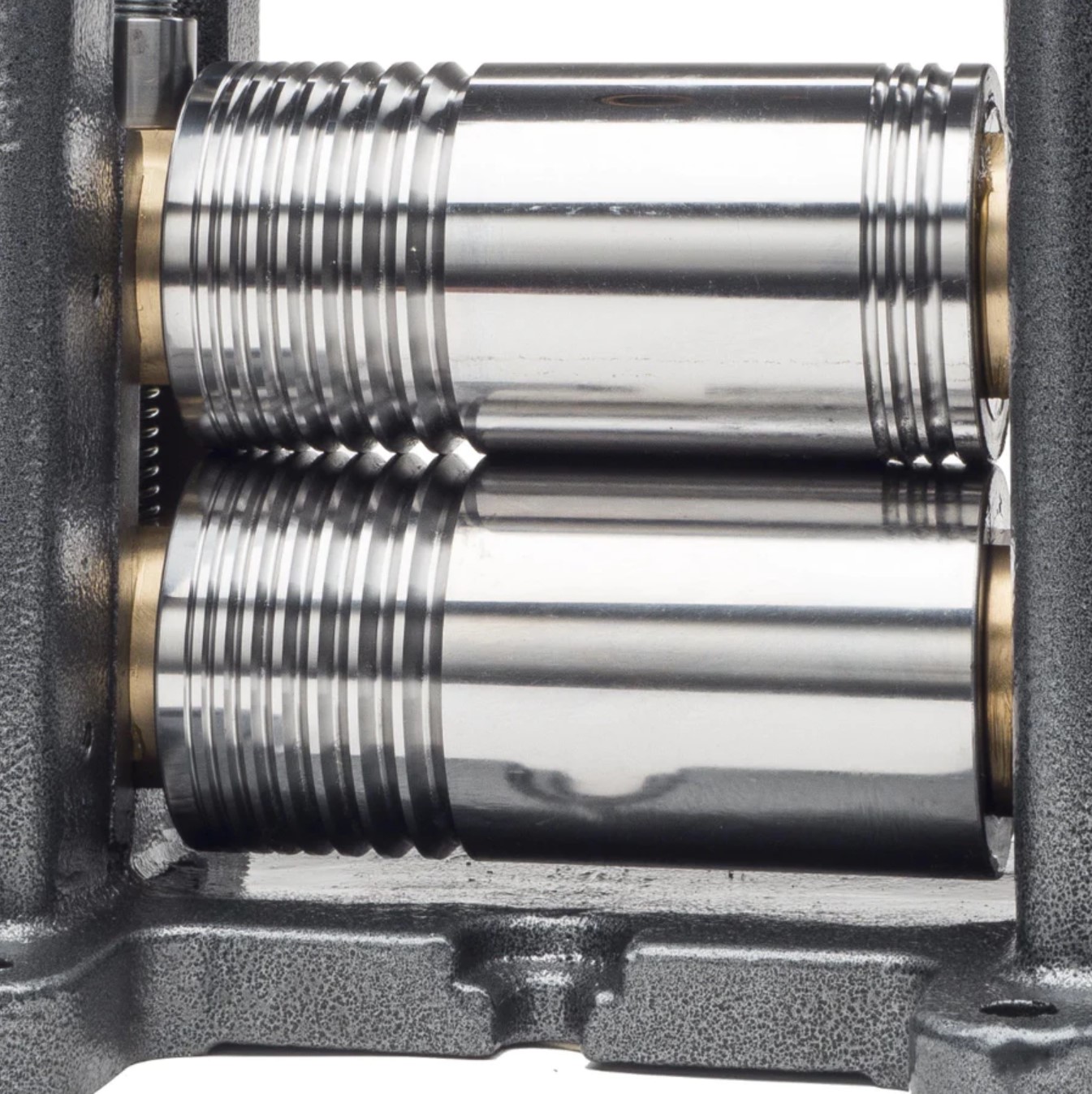

The rollers are made from a high quality carbon steel alloy that offers excellent wear resistance and the outer 3mm of the rolls are hardened to around 60 HRC for superior deformation resistance.


The units are all powder coated for superior corrosion protection and appearance, featuring true gear reduction with easily turned short handles.

photo for reference only
photo for reference only		Features:
  • PLATINUM SERIES ROLLING MILLS
 Specifications:
  • Roller width 90 mm
  • Gear ratio 4:1
  • Roller diameter 42.6 mm
  • Maximum opening 0-4 mm
  • Flat area (± 0.01mm) 38 mm
  • Square wire (± 0.01mm) : 1.5, 2.0, 3.0,4.0, 5.0
  • Ring shank - half round ellipsis:2.5 x 1:3 x 1.25 ; 4 x 1.5
  • Capable of producing metal foil as thin as .001"


Ref
Description 90mm Combination Ultra Mill with Ductile Frame #187.20A
